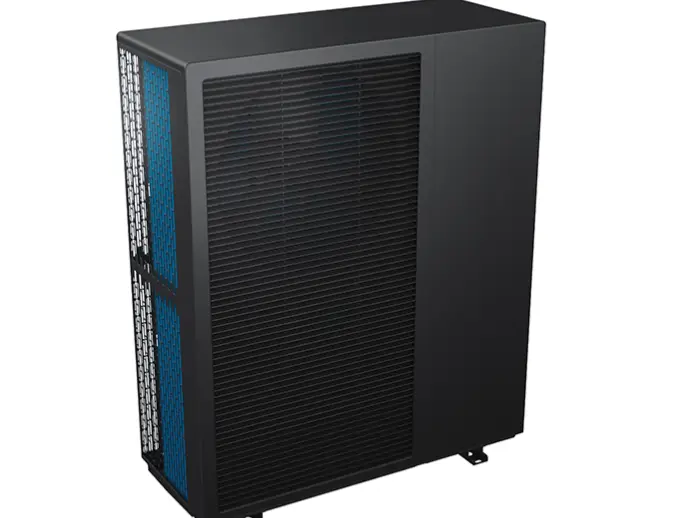

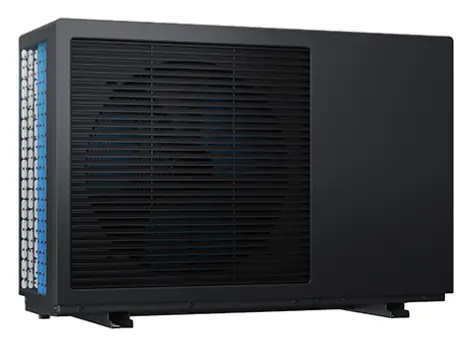

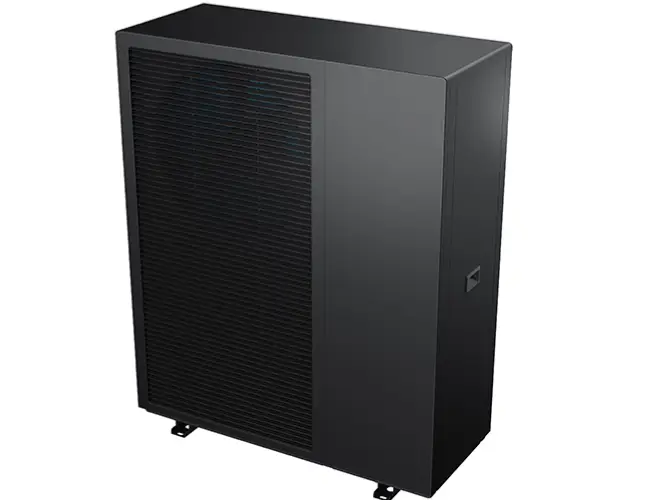

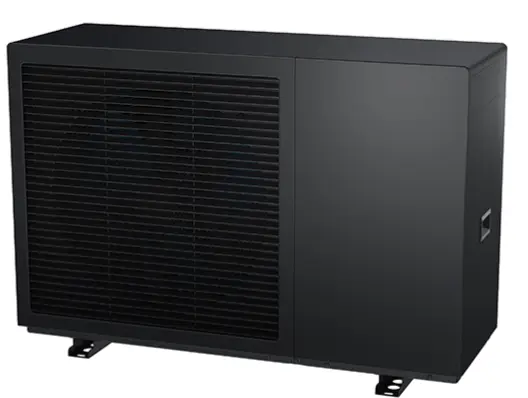

R290 Residential Monoblock Heat Pump

Available for customization to meet your specific requirements

• Power Supply Specifications

5 models with two power types: 220~240V/1Ph/50Hz single-phase (TC1 suffix) ;

380~415V/3Ph/50Hz three-phase (TC3 suffix).

• Energy Efficiency Grade

ERP level (outlet water temp. at 35°C) for all units: A+++.

• Refrigerant Type

All models adopt R290 refrigerant.

• Core Inverter Configuration

Fan motor, compressor and circulating pump are all DC inverter type, circulating pump is built-in.

• Protection & Noise Parameter

IP protection class IPX4;

sound pressure at 1m distance ranges from 42dB(A) to 55dB(A) by different models.

• Working Ambient Temperature Range

Heating mode operating range: -25℃ ~ 45℃;

Cooling mode operating range: 16℃ ~ 45℃.

• Maximum Hot Water Output

Max outlet water temperature of all heat pumps: 75°C.

• Water Pipe Connection Standard

Small models (006/012 series): DN25 (1") pipe; 018 series: DN32 (1-1/4") pipe.

• Fan Configuration Difference

BLN-006TC1, BLN-012TC1, BLN-012TC3 equipped with 1 fan;

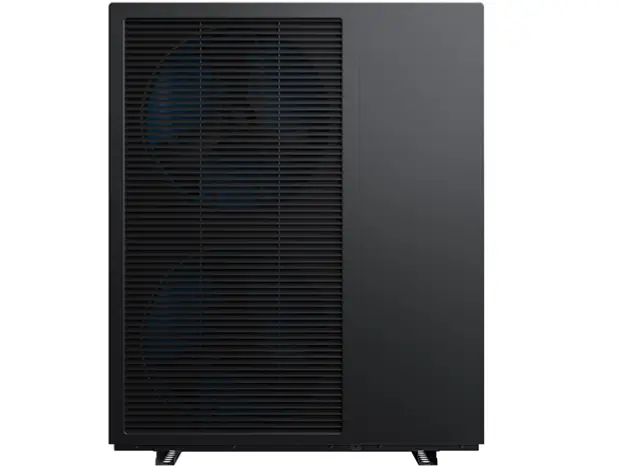

BLN-018TC1, BLN-018TC3 equipped with 2 fans.

• Performance Test Conditions

Two heating test conditions: A7/6°C ambient with water 30/35°C & 47/55°C;

cooling test condition: A35/24°C ambient, inlet water W12/7°C.
