20ft / 40ft Foldable Expandable Prefab Container House
- Min. order
- 3
- Lead time
- 30 workng days
Available for customization to meet your specific requirements

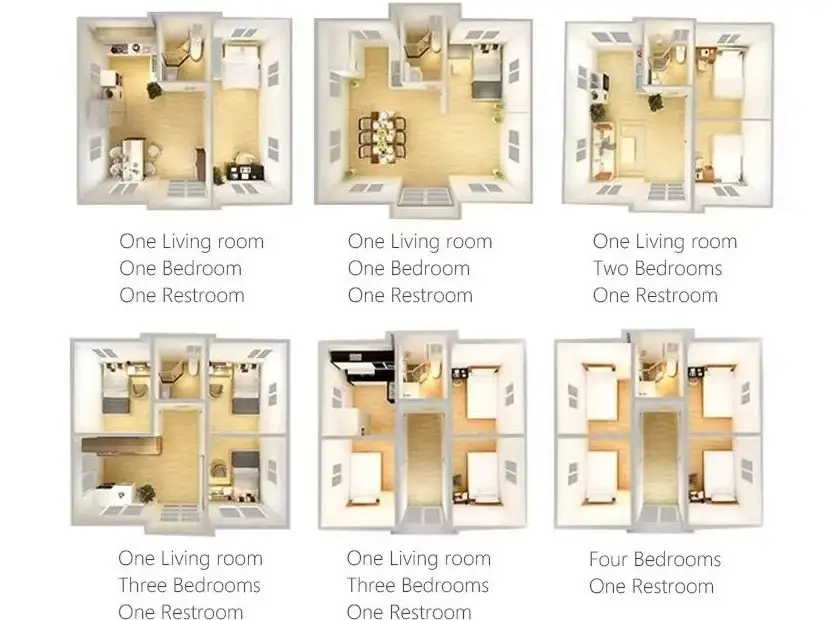

3 Bedroom Vocation Vila Foldable 40ft 20ft Expandable Prefab Container House
Product Type | Expandable Flat Pack Container House |
Main Material | Q235 Galvanized Steel, Sandwich Panel, EPS Material |
Application | Office Building, Hotel, Classroom, Washroom, Storage Room |
Feature | Breathable, Fireproof, Rainproof |
Shape | Rectangle |
Design Style | Modern |
After-sale Service | Online Technical Support |
Usage Scenarios | Hotel, Living Room, Classroom, Toilet, Warehouse |
Thickness | Standard & Reinforced Version |
Place of Origin | Shandong, China |
Product Name | Flat Pack Container House |
External Size | 5850mm × 6400mm × 2560mm |
Core Advantage | Fireproof, Waterproof, No Water Leakage |
Window | Plastic Steel Window |
Size
20ft(6.10m)
40 ft(12.19m)
Supplier’s customization ability
Minor customization
Drawing‑based customization
Sample‑based customization
Full customization
Certificates: CE
20ft house open size | 5850mm(L)*6400mm(W)*2530mm(H) | 19'4''(L)*21’(W)*8'4''(H) |
20ft house folded size | 5850mm(L)*2200mm(W)*2530mm(H) | 19'4''(L)*7'3''(W)*8'4''(H) |
40ft house open size | 11800mm(L)*6400mm(W)*2530mm(H) | 38'9''(L)*21’(W)*8'4''(H) |
40ft house folded size | 11800mm(L)*2200mm(W)*2530mm(H) | 38'9''(L)*7'3''(W)*8'4''(H) |
Main Frame | 2.0/2.3/2.5/2.75/3.0 mm thickness, with Powder Coating | |
Drainage System | φ50mm, PVC drainage tube | |
Ceilling | 0.4mm thickness, 831 ceiling tiles with 38 angle aluminum | |
Flooring | 18mm fiber cement board+1.6mm PVC floor covering | |
Interior Description | Inner corner post cover+PVC baseboard | |
Door | size:925*1970mm, frame thickness:1.0mm | |
Window | size:925*1100mm with single or double glass 3.0mm thickness | |
Wall Panel | Width:950mm, Thick:50mm sandwich panel with 70kgs rock wool | |
Electricity System | Copper wire+Switch+LED Light+Distribution Box+Breaker+Socket and box | |
Insulation | 100mm glass wool+50mm rock wool | |
Strengthening Bottom | Galvanized steel square tube can be add to 14 pieces | |
Resistance | Wind resistance:Grade-11; Earthquake resistance:Grade-8 | |
Other | Fitting+995 structural silicone sealant+fastening |
