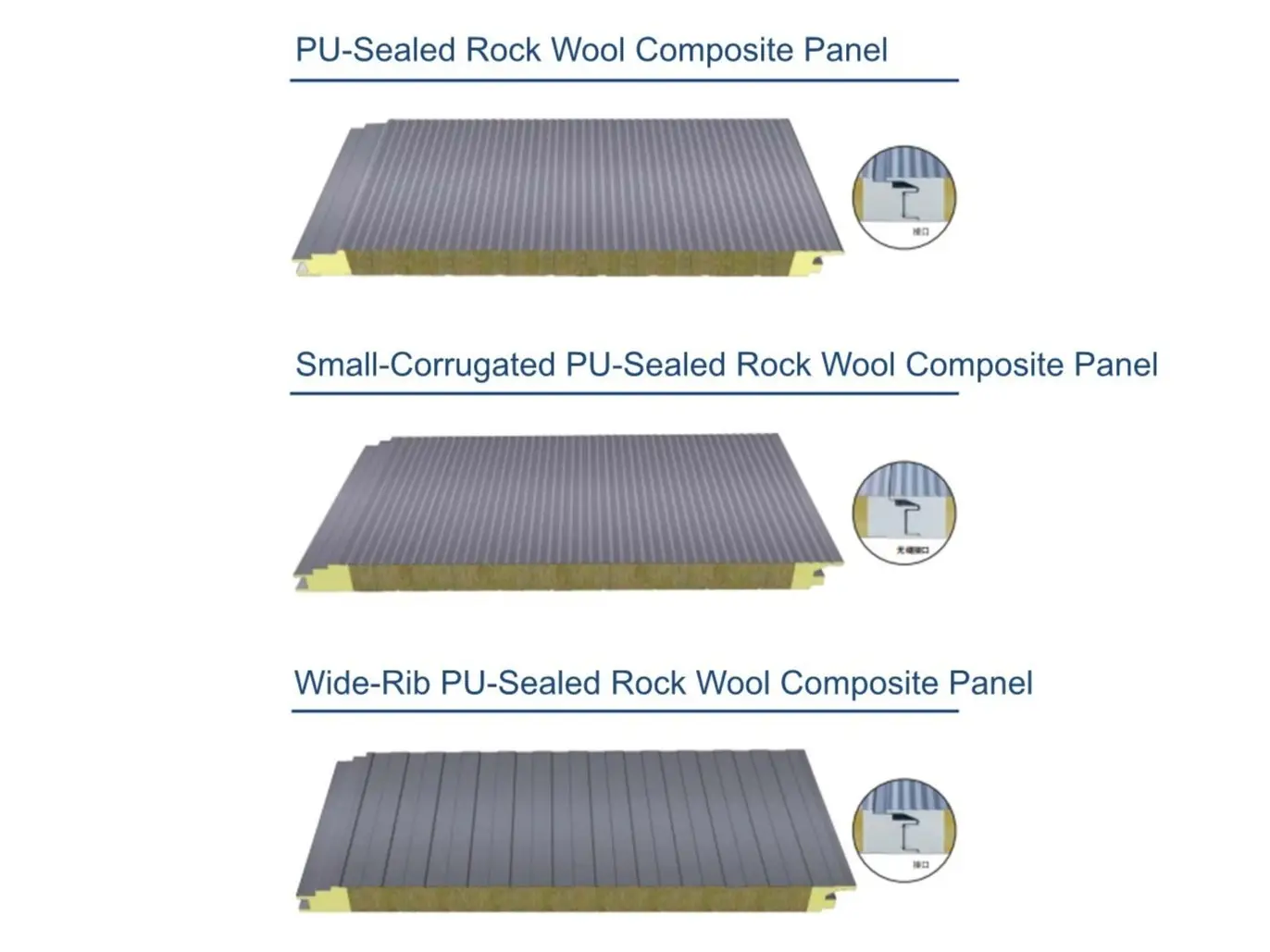

Polyurethane-Sealed Rockwool Sandwich panel

Available for customization to meet your specific requirements

• Standard Width:500‑1000 mm

• Standard Thickness:50, 60, 75, 80, 100, 120, 150 mm

• Fire Performance:Class A Non‑combustible

• Thermal Performance:Thermal Transmittance ≤0.04 W/(m²·K)

• Core Density:100‑140 kg/m³

• Sound‑Reduction Performance:Average Sound Insulation ≥37 dB (50 mm panel)

• Durability :Superior chemical stability unmatched by organic materials

• Operating Temperature:-268 ℃ ~ 700 ℃

outer steel sheets can be customized per client requirements.

Features :

• Fire‑resistant Performance: Rock‑wool core is non‑combustible material with melting temperature over 1000 ℃. It can effectively stop flame spread in fire accidents and minimize fire hazards.

• Energy‑saving & Thermal Insulation: Low thermal conductivity λ=0.043 W/(m·k), delivering excellent thermal insulation. Optimized joint design ensures good sealing and thermal‑insulating effect.

• Sound Insulation: Sound reduction ≥30 dB, effectively suppressing external noise interference.

• Water‑Tightness & Air‑Tightness: Unique interlocking joint between panels prevents water ingress. PU‑sealed panel ends maintain reliable air‑tightness.

• Robust & Durable: High‑quality rock‑wool core with high water‑repellency. Hard PU foam fills both sides of tongue‑and‑groove joints to boost overall structural strength for long‑term stability.

• Attractive Facade: Concealed fastener joint design, flat panel surface. Rich & long‑lasting PVDF coating colors.
